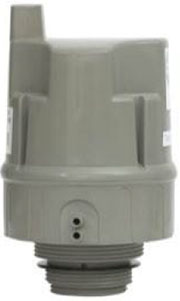

TEK682

• Dimensions 101mm (W) x 93mm (L) x 150mm (H) ±1mm / 4” (W) x 3.7” (L)x5.9” (H) ±0.04”
• Weight 530g/1.2lb including 4 x C size batteries - 290g/0.63lb without batteries
• Housing Material UV Stabilized Polypropylene (compatible with Oil)
• Operating Temperature -10°C to 50°C / 14°F to 122°F(Note 1)
• Storage Temperature 10°C to 20°C / 50°F to 68°F(Note 1)
• Altitude Range <2Km/1.25Miles above sea level
• Environmental Protection IP67 – Oulioors
• Radio Frequency Tri-Band GSM (Quad band available)
• Gauge Type Ultrasonic
• Ultrasonic Range >12cm to <3M / 4.7” to 118”(Note 2)
• Ultrasonic Signal Diversion 30°(Note 3)
• Ultrasonic Resolution ±1cm / 0.39”
• Accuracy Typically ±2cm from 12cm to 3m / ±0.8” from 4.7” to 118”
• Material compatibility (Note 4)
• Power requirements 4 of Type C LR14 Alkaline 1.5V (fitted)
• Battery life > 5 Years(Note 5)
• Humidity range 15% - 95%

Note 1: Storage and operation above 20°C/68 °F may reduce battery life. Minimum distance measured is derated with temperatures <0°C/32°F.

Note 2: Based on a measurement to a flat liquid target of size 30cm2 /4.7”2

Note 3: The maximum spatial diversion of the ultrasonic signal will be < 30° from the central axis of the transducer.

Note 4: Suitable for use in tanks for the storage of water diesel fuel, kerosene, gas oil types A2,C1,C2 and D as defined by BS2869.

Note 5: Based on 8 GPRS messages per month in standard configuration at a location with adequate GPRS coverage.

• SIM Card Options available
• Tank mounting options Fit directly into 1 ¼”, 1 ½” or 2” BSP existing tank connection

Complies with Directive 2004/108/EC for Electromagnetic compatibility and the Low voltage directive 2006/95/EC for product safety and the R&TTE directive 1999/5/EC for radio. Compliance was demonstrated to the following specifications as listed in the official journal of the European Communities.

• EN 55022，A1.A2 Limits and methods of measurement of radio disturbance characteristics of information technology equipment.
• EN 61000-4-2/3 Electromagnetic compatibility
• EN 301 489-1 ERM and EMC standard for radio equipment and services Part1
• EN 301 489-7 Electro-magnetic Compatibility and Radio Spectrum Matters (ERM); Electro-magnetic Compatibility (EMC) Standard for Radio Equipment and Services; Part 7: Specific Conditions for Mobile and Portable Radio and Ancillary Equipment of Digital Cellular Radio Telecommunications Systems (GSM and DCS)
• EN 301 511 Global System for Mobile Communications (GSM); Harmonized EN for Mobile Stations in the GSM 900 and GSM 1800 Bands Covering Essential Requirements Under Article 3.2 of the R&TTE Directive (1999/5/EC)
• EN 301 489-3 Electromagnetic compatibility and Radio spectrum Matters (ERM); Electromagnetic Compatibility (EMC)
• RoHs Compliance Yes

• Liquid level monitoring

• Fuel – Oil, Kerosene

• Water

• Waste Oil

• Fixed or portable tanks

• Ensure continued supply

• Optimise delivery or collections

• Spot inventory measurement

• Programmable alarms

• Full alert

• Empty alert

• 24/7 monitoring
