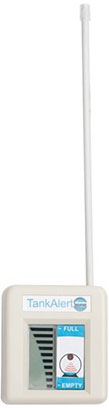

TEK377A

• Dimensions EU:50mm (W) x 70mm (D) x 199mm (H) ±3mm
  2”(W) x 2.7”(D) x 7.83”(H) ±0.12”
  UK:50mm (W) x 55mm (D) x 199mm (H) ±3mm 2”(W) x 2.2”(D) x 7.83”(H) ±0.12”
  USA:50mm (W) x 51mm (D) x 135mm (H) ±3mm 2”(W) x 2.01”(D) x 5.3”(H) ±0.12”
  AUS/NZ:50mm (W) x 59mm (D) x 199mm (H) ±3mm 2”(W) x 2.3”(D) x 7.83”(H) ±0.12”
• Weight EU: 70g/0.154lb
  UK: 70g/0.154lb
  US: 60g/0.13lb AUS: 71g/0.156lb
• Housing Material ABS
• Operating temperature -10°C to 60°C / 14°F to 140°F
• Storage Temperature -20°C to 60°C / -4°F to 140°F
• Altitude range <2Km/1.25Miles above sea level
• Environmental Protection IP44 Indoors only
• Receiver Sensitivity -100dBm to -110dBm @ 0.001 BER
• Power requirements EU/UK/NZ/AUS: 230V AC 50-60Hz, 20mA USA: 115V AC 60Hz, 30mA
• Humidity range 15% - 95%
• LCD Display 10 level bar graph with refill/error icons

• EMC directive 2014/30/EU The Electromagnetic Compatibility (EMC) Directive ensures that electrical and electronic equipment does not generate, or is not affected by, electromagnetic disturbance.
• LVD directive 2014/35/EU The Low Voltage Directive (LVD) ensures that electrical equipment within certain voltage limits provides a high level of protection for European citizens, and benefits fully from the Single Market.
• RoHs directive 2011/65/EU This Directive lays down rules on the restriction of the use of hazardous substances in electrical and electronic equipment (EEE) with a view to contributing to the protection of human health and the environment, including the environmentally sound recovery and disposal of waste EEE.
• CE compliance Yes

• Communicates with RF sensors for:

• Fuel Tanks – Oil, Kerosene, AdBlue

• Commercial or Domestic Water Tanks

• Interior, Exterior & Underground Tanks

• LPG tanks

• Propane tanks
