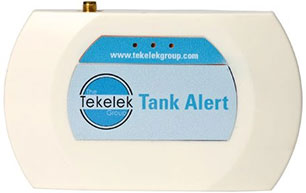

TEK608

Tekelek’s IP modem is compatible with the Tekelek liquid and gas fuel level tank sensors, and with the residential burner lockout/temperature sensor, providing reliable communications to the Tekelek remote server monitoring system (RMS) that monitors the tank fuel levels, central heating burner operation, and room temperatures.
With turnkey development, it could be used with other OEM wireless sensors to relay data to a 3rd party server/webserver application.

Benefits:

Enables sensors to be remotely monitored
Monitor up to 8 sensors
Mix and match sensors to your needs
Delivers data at a determinable schedule
Immediate threshold broken notification (High/Low/Fill or Drain)
Powered by standard 9v mains to DC power supply (supplied with modem)
433/914 MHz versions available for global use

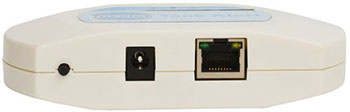

Connects to spare RJ45 port of broadband router (RJ45 cable supplied with modem)
Can be configured via RMS software
Wall mount or desk mount
Compatible with current and future Tekelek sensors
Use with OEM sensors possible – contact Tekelek

Specification Accessories Conformity Applications

Dimensions 120mm(4.7”)(W) x 25mm(0.98”)(D) x 72mm(2.8”)(H)
excluding antenna
Weight 100g/0.22lb
Housing Material ABS
Operating temperature -10°C to 60°C/14°F to 140°F
Storage Temperature -20°C to 60°C/-4°F to 140°F
Humidity range 20% to 80% non-condensing
Altitude range <2Km/1.25 Miles above sea level
Environmental Protection Indoor use only
Radio frequency 433.92 MHz FM (EU/UK/NZ/AUS) or 914.5 MHz FM (USA) options available
Receiver sensitivity -100dBm to -110dBm @ 0.001 BER
Sensor to Modem Radio
range 200m(656ft) (433.92MHz) / 150ft (914MHz) with Tekelek
sensors
Power requirements (DC) Mains (110VAC or 220VAC) to DC separate supply
required. 9V Unregulated 30mA
PSU DC jack size 2.5mm / 0.1”
Status indication Three LEDs, Green, Amber & Red indicate status
regarding sensor synchronisation, sensor activity, IP activity, and power.
Sensor synchronisation Integrated magnet to activate Tekelek sensors into teach mode
Server system connection Push button to force off schedule server contact during installation

EU/UK/NZ/AUS variants meet the intent of Directive 89/336/EEC for Electromagnetic compatibility and the Low voltage directive 73/23/EEC for product safety and the R&TTE directive 1999/5/EC for radio. Compliance was demonstrated to the following specifications as listed in the official journal of the European Communities USA variants compliant to FCC part 15 in UL approved test facility.

EN 55022，A1.A2 Limits and methods of measurement of radio disturbance characteristics of information technology equipment.
EN 61000 Electromagnetic compatibility
EN 55011 Industrial, scientific and medical (ISM) radio-frequency equipment
EN 60335-1 Safety of household and similar appliances
EN 300 220-3 Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices (SRD);
EN 301 489-3 Electromagnetic compatibility and Radio spectrum Matters (ERM); Electromagnetic Compatibility (EMC)
RoHs Compliance Yes
FCC part 15 compliance USA variant

• Remote monitoring with Tekelek sensors of:

- Burner lock-out

- Room temperature

- Fuel tank liquid level

- LPG/Propane tank level

• General remote monitoring of OEM wireless (433/914 MHz) sensors – contact Tekelek
