- Dimensions 95mm (W) x 87mm (L) x 170mm (H) ±1mm / 3.7" (W) x 3.4"(L) x 6.7" ±0.04"
- Weight 125g/0.28lbs (excluding dial gauge)
- Housing Material UV Stabilized Polypropylene
- Operating temperature -30°C to 45°C / -22°F to 113°F(Note 1)
- Storage Temperature 0°C to 25°C / 32°F to 77°F(Note 1)
- Altitude range <2Km/1.25miles above sea level
- Environmental Protection IP67 - Outdoors
- Radio frequency
433.92 MHz FM (EU/UK/NZ/AUS) or 914.5 MHz FM (USA) options available - Radio output power EU/UK/NZ/AUS 5dBm ±2dBm / US 0dBM ±2dBm
- Receiver Sensitivity N/A

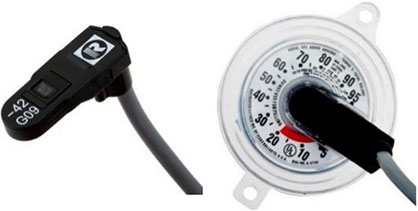

- Gauge Type Rochester R3D / Twinsite Hall Effect
- Gauge Resolution Note 2
- Power requirements SAFT LST142503PF 3.6 V Primary lithium-thionyl chloride (non-replaceable)
- Battery life Up to 10 Years (not replaceable)
- Humidity range 15% - 95%
- LCD Display N/A
Note 1: Storage and operation above 20°C/68°F may reduce battery life.
EU/UK/NZ/AUS variants meet the intent of Directive 2004/108/EC for Electromagnetic compatibility, the Low voltage directive 2006/95/EC for product safety, the R&TTE directive 1999/5/EC for radio, and the requirements of the ATEX directive 2014/34/EU for potentially explosive atmospheres . Compliance was demonstrated to the following specifications as listed in the official journal of the European Communities. USA variants compliant to UL913 Intrinsically safe standards and FCC part 15 in UL approved test facility.
- ATEX directive 2014/34/EU II 2 G Ex ib IIA T4 (TRAC09ATE21221X)
- UL913 Intrinsic Safety Approved (USA variant) UL913 112970 Hazloc
- EN 55022,A1,A2 Limits and methods of measurement of radio disturbance characteristics of information technology equipment.
- EN 61000 Electromagnetic compatibility
- EN 55011 Industrial, scientific and medical (ISM) radio-frequency equipment
- EN 60335-1 Safety of household and similar appliances
- EN 300 220-3 Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices (SRD)
- ETSI EN 301 489-3 Electromagnetic compatibility and Radio spectrum Matters (ERM); Electromagnetic Compatibility (EMC)
- RoHs Compliance Yes
- FCC part 15 compliance USA variant
• LPG Tanks
• Propane Tanks
• Other types of gas storage with Rochester R3D or Twinsite dial gauges
